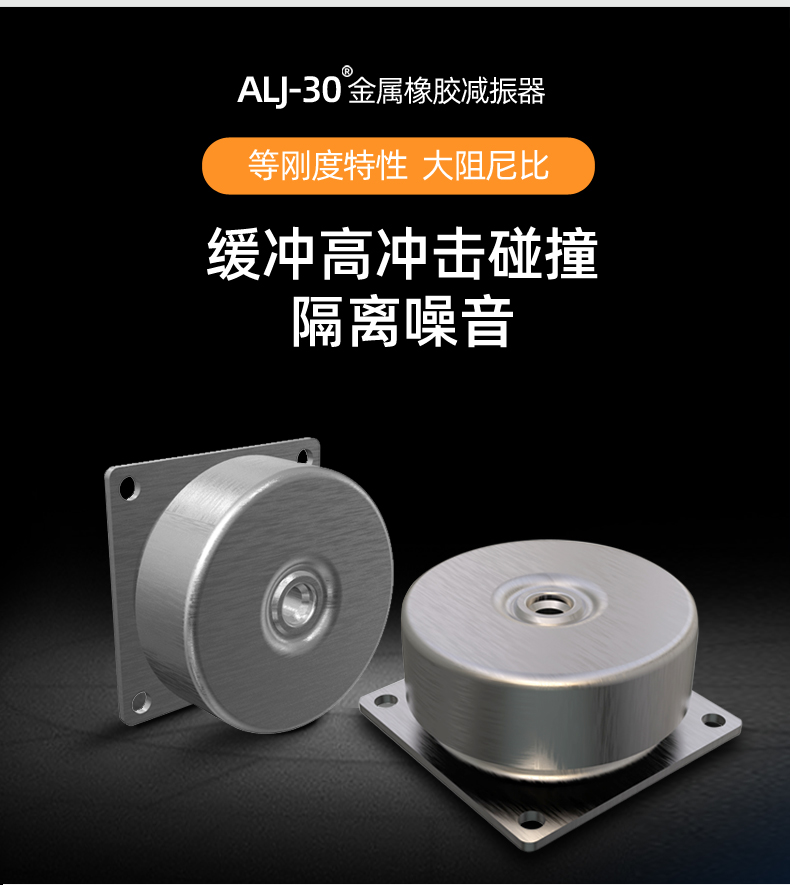

ALJ3000-3004 Rubber Mount, Rubber Mounting, Rubber Shock Absorber

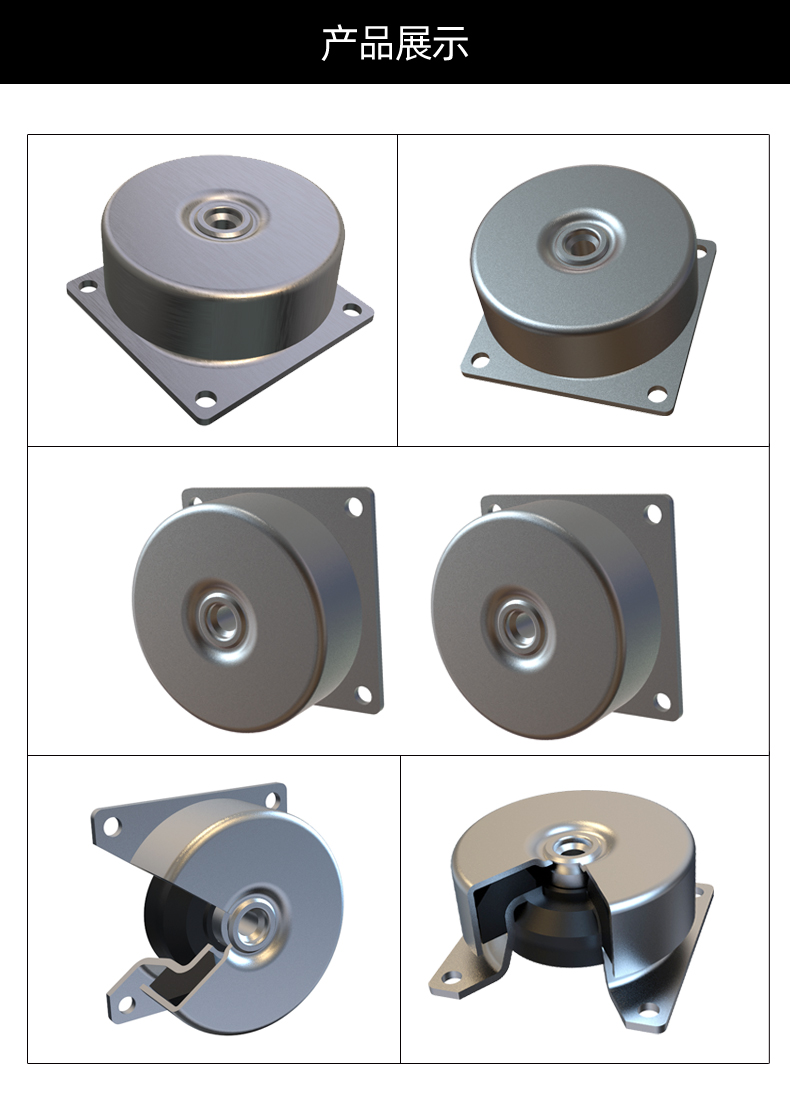

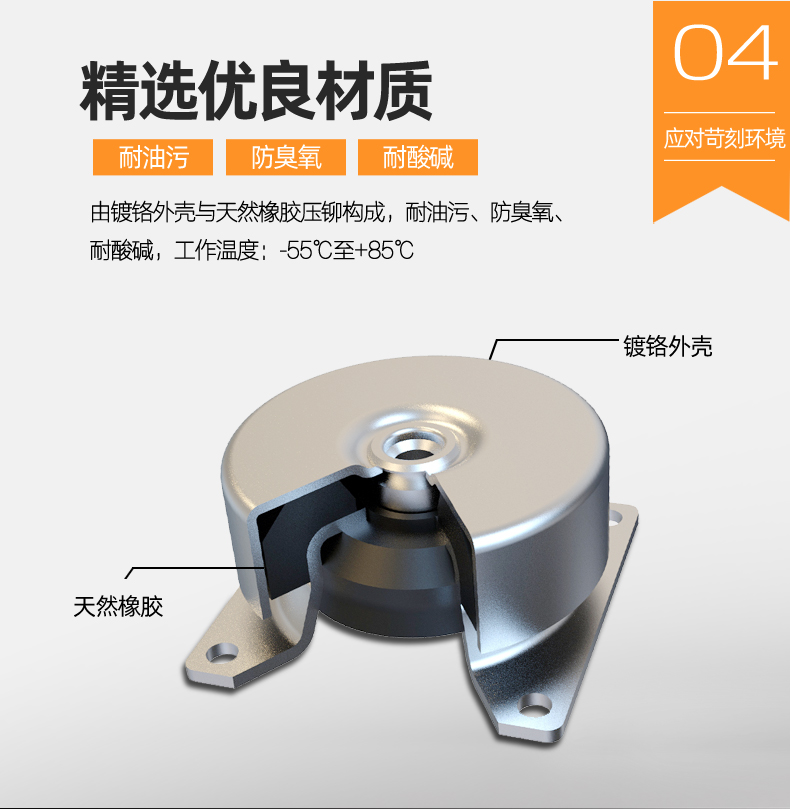

Description: the ALJ30000-3004 rubber mounting is one of bell-type shock absorber with professional technology and inimitable formulation and full sets of injection moulds without mould line and nothing mould cost.. The top is round cap of female screw made with high quality zinc coated metal sheet, the bottom is support metal sheet with 2 stockets, the middle is high quality rubber of NBR, NR with full adhesive between the rubber and metal parts. It can reach the height effect for the vibration in the axial pressure and lateral pressure, especially used in generators, engines systems motor and so on, work range around 500-3500HZ and 1500-3500HZ mounting. The product inner structure is the rubber strong bonding with the metal, in addition there is a small rubber compress but higher load, and it help to get more safety with special design of safety lock in the middle, locking the product. It is very reliable and durable. Apply to anti-vibration and shock absorption for all kinds generators, engines, motors, compressor, pump, refrigerator and other metal system.

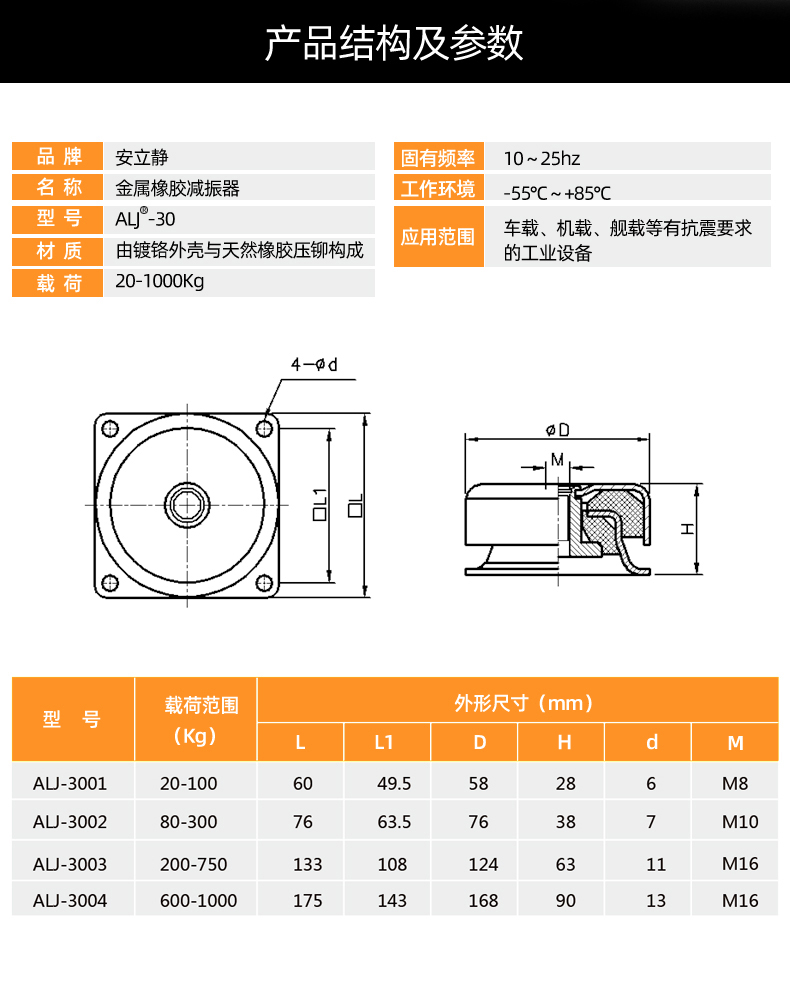

Specifications:
material: blue zinc-plated metal + rubber
rubber: NR, NBR(default is NR 60shore A)
quality: industrial grade
color: natural galvanized color
top: metal cap with screw thread
middle: high tensile rubber
bottom: metal seat with grooves
surface: smooth
tensile strength: 8-12Mpa
hardness: 40, 60+/-5shore A
elongation: 350%
density: 1.4g/cm3
working temperature: -40°C - +120°C
working frequency: 500-3500HZ
size: standard without mould cost
packing in cartons and crates
OEM & customized size are agreed
***when you order, pls confirm the quantity and product code number or your drawings***
